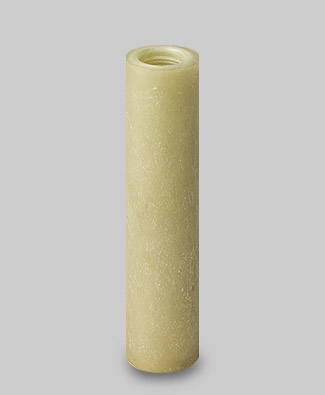

FRP COUPLINGS
1/2" DIAMETER
4" LENGTH
150 PSI

ResinQty in
Stock		Weight
[lbs]		Unit
Price		Qty
Hetron 92201$10.00



Features
  • Threads are filament wound
  • Single Nexus and single C-Veil resin rich liner are built after threads for maximum corrosion resistance
  • Machined finished without top coat
  • Standard stock Resin is Hetron 922 with MEKP cure. Other resins available upon request.
 FRP Couplings

ansi standards  |  Download PDF

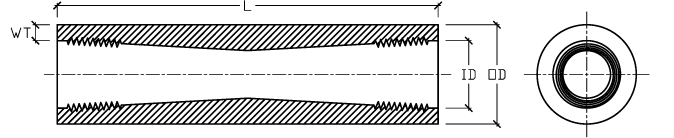

Specifications

Nominal Inside DiameterPressure RatingOutside DiameterOverall LengthWall Thickness
[ID]PSI[OD][L][WT]
1/2"1501-1/4"4"1/4"
Information appearing on this website is provided as a guide for the use and application of the products being offered. It is not and does not represent a specific warranty or guarantee of the product or its performance. It is the user's responsibility to determine the suitability of this product for a specific application.
